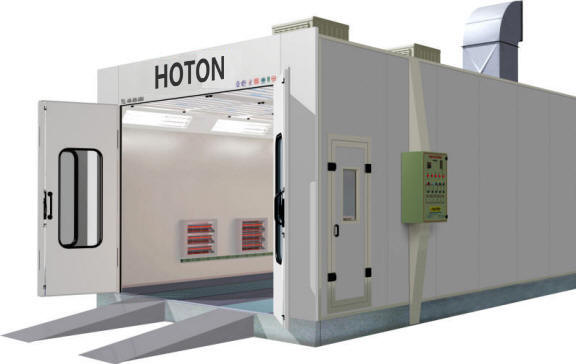

Cabin System

Wallboard

EPS (epispastics polystyrene)Colorful Steel Skin Boards 0.326mm, 50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation, Galvanized steel roof panel

Basement

Galvanized Steel Sheet and Square steel pipe assembling, Grid &embossed plate floor, Three embossed steel ramps.

Air Circulation System

Inhaling Ventilator

Blower capacity:  22000m³/h

Outlet Fan:4kw /1set

Power:        1.5kw/set

Quantity:           2 sets

Air Volume: 22000m³/h; Air Speed: 0.35m/s, Air Recycling times:280 times/h;

Purification System

Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10μm. Ceiling Filter Capture Granules Bigger than 4μm. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.4mg/m³

Heating System

Burner

30pc Infrared heating tube

Heat Energy Converter

SUS304 Stainless Steel heat exchanger, argon arc welding;

Max Temp:80^。C, Heating Time:6-8min(20-50℃),

Light System

Ceiling Light: 24pcs 36w Philips Lamp; 800 Lux

Controlling System

Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm

Fireproof silicone wallboard

add $300

Let the light in the wallboard

Add$420

Water paint Air supply dry system

Add$1300

Photocatalytic waste gas treatment system

Add $3600

Stainless steel glass door

Add$1500

Fan pipe(0.91M,700*700)

Add:$40

Inhaling Ventilator  4kw

Add:$300
