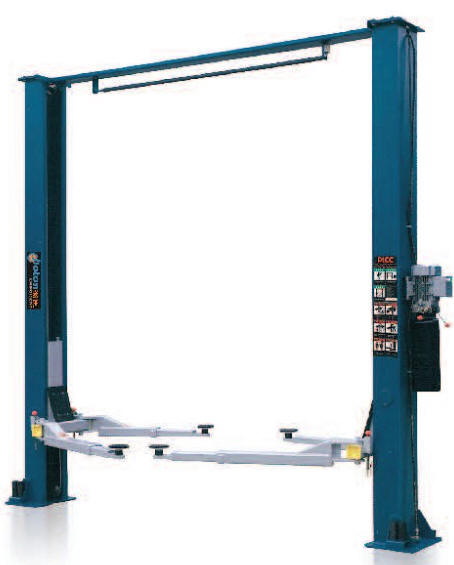

HOTON Two Post Lift Series

---Our product,Your face

Feature:

. Manual release from two sides, double insurance self-locking protection device,safe and easy to operate.
. Equip height limit switch to ensure the lifting height safely, prevent the vehicle roof from damaging
. Equalization of two steel cables force both sliding blocks to move synchronously,effectively prevent the vehicle from tilting.
. Minimum height of the lifting pad is 110 mm, easily lift and suitable for low profile cars and SUV.
. Equip aluminum motor and car door-opening protection as standard configuration.
. Reliable oil cylinder, adopts chrome-plating honed cylinder and piston rod, with Italian seals on hydraulic rams, ensure long service life.
. Passed 115% dynamic test and 150% static test

Specifications

• Model
• HC-240DL(Item:622001)
• Feature
• Manual release
• Lifting Capacity
• 4000kg (8840 lb)
• Lifting Height
• 1800mm (70.9”)
• Machine Height
• 3605mm (141.9”)
• Machine Width
• 3426mm (134.9”)
• Rise time
• 50s
• Drop time
• 22s
• Power of motor
• 2.2kw
• Power Supply
• 220V/380V 1/3 PHASE

Dimensions

Package Information
Metal frame and carton
3700*550*600mm  660kg

More Detail

Bolt position
