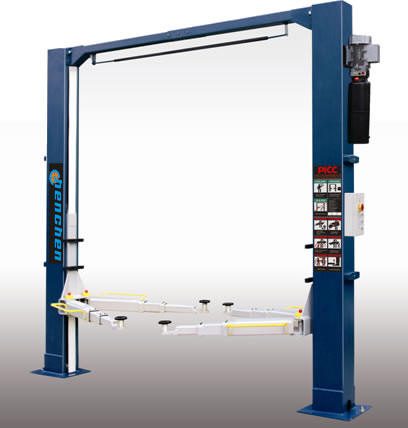

HOTON Two Post Lift Series

---Our product,Your face

Feature:

Clear floor two post lift
. Electrical release, just press “up down and lock” button to operate.
. Low voltage control system matches CE standard.
. Electrically controlled mechanical safety device, adopt electromagnetic release more safe and reliable.
. Equipped dust cover enhance the lifetime of steel rope and chain.
. Equipped emergency limit switch to ensure the lifting height safely, prevent damaging vehicle roof.
. Adopt with two steel cable in synchronous connection, forced both two slides move synchronously, and effectively. Prevent the vehicle from tilting.
. Minimum pick up pad height is 110 mm, easily accommodates low profile cars and SUVs.
. Aluminum motor and car door protection are standard.
. Reliable cylinder, chrome-plating honed tube and piston rod, and Italian seals on hydraulic crams,in each column provides long service life.
. Passed 115% dynamic test and 150% static test.

Specifications

• Model
• HC-250DLE
• Feature
• Electrical release
• Lifting Capacity
• 5000kg (11050 lb)
• Lifting Height
• 1850mm (72.8”)
• Machine Height
• 3605mm (141.9”)
• Machine Width
• 3426mm (134.9”)
• Rise time
• 50s
• Drop time
• 22s
• Power of motor
• 2.2kw
• Power Supply
• 220V/380V 1/3 PHASE

Dimensions

Package Information
Metal frame and carton
3700*550*600mm  800kg

More Detail

Bolt position
