HOTON  Nitrogen&Inflator Machine Series

---Our product,Your face

FS4000L Nitrogen Machine

Feature:

PSA（Pressure Swing Adsorption）Tire Nitrogen Machine, being used widely, does not need high cost equipments, land and high salary maintenance technicians, but it can produce Nitrogen with low cost, high purity and low dew point.
It is based on using the latest PSA technology and utilizes Carbon Molecular Sieve (CMS)
To separate nitrogen from the other gases contained in air. When the air is compressed, N2 and O2 make up of most part of the air, however, oxygen molecules are much smaller than Nitrogen and their diffuse speed is different, by using this point, the gas can be separated. After this process is finished, the CMS adsorbs the oxygen molecules, so the nitrogen produced by PSA has high purity and low dew point. Generally speaking, it is very easy to obtain the nitrogen with purity 99% and dew point -60℃. Our company is able to design and manufacture according to user’s requirements. The highest purity of nitrogen can be reached 99%.

Specifications:

Vehicle Applicable:

Power supply : 110V/220V/50~60Hz
Power : 60W
Nitrogen Purity: 95~99.5%
Compressed Air Input Range: ≤174Psi/12Bar
Nitrogen Output: 66L/min(2.3cfm)@145psi/10bar
Nitrogen Storage Tank : 70L/18.5gal
N2 Output Pressure : ≤98psi/6.8bar
Operation Temp : -20℃~+70℃
Measuring Range: 5~110Psi/0.3~8Bar
Accuracy : ±0.5Psi/0.03Bar
Display Mode : LED
Dimension : 1420(H)X720(L)X510(W)mm
Net weight: 128 Kgs
Packing size : 1560(H)X760(L)X620(W)mm
Gross weight : 145 Kgs

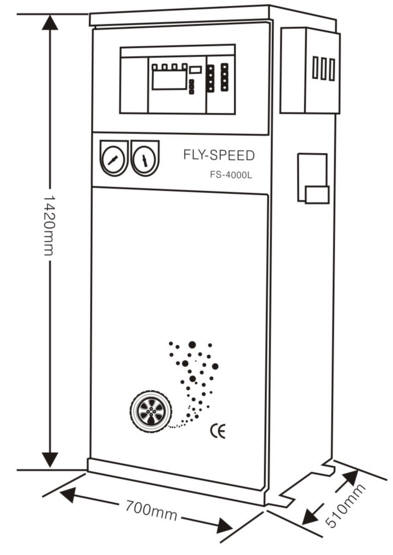

Dimensions:

Package Information:
Metal frame and carton
More Detail:
