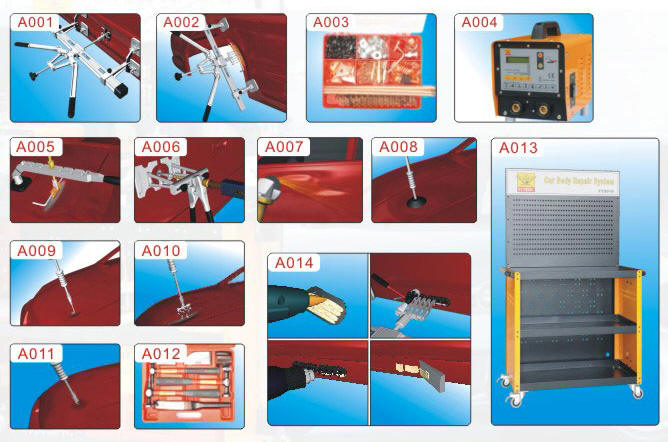

FY9018 Quick Spot welding machine&Tool For Iron

Features:
? With advanced international car body repair technology
? Quick repair for various car body metal sheets
? Aluminium repair unit is available as an option
? Luxury trolley, practical and convenient
? Professional spot welding machine with LCD display
? Power supply of 200-400V 50/60Hz 30A
? Special pneumatic cupule with a suction pressure of 80-120Psi
? High quality tools made using the molding manufacturing process
? Various special repair tools are available as options
? Various repair tools can be hung on the pegboard.

Specifications:

Input voltage:

Input power:
Input current:
Max welding current:

Output voltage carbon rod heating:

Output voltage washer melting rate:

Output voltage butt-weld:
One-side welding thickness:

Operation way:

Weld timing range:

Weld current regulation:

Cable length:
Dimensions:
Weight:

AC 200-240V or 380-440V 50/60Hz

21KVA
55A
5400A

AC6-10V
AC1-12V

AC1-13V

0.8+1.2mm

continuity

0-99s
ABC

2300+1900mm
620*450*980mm
80kg

Dimensions:

Package Information:
Metal frame and carton
