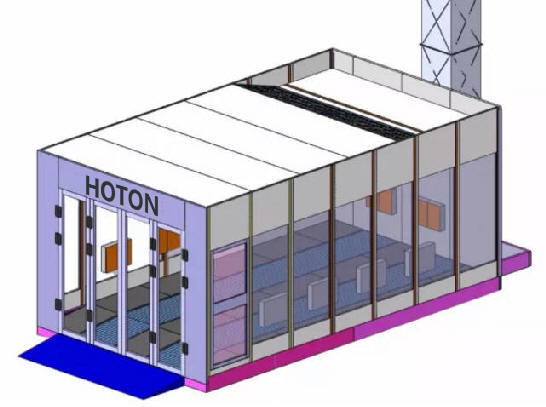

HC-F100G F200G F300G Stainless&Glass door Spray Booth （Item：712100）

　Click here introduce video

http://k.360kan.com/pc/detail/WEKB8GD7VzQA

Specifications:

Outside Size (mm)	820040003370mm	Front Door(mm)	3000(w)×2600(H)
Inside Size(mm)	6900×3900×2650	Total Power(km)	7.5+30kw

Feature:

Cabin System	Main door	3000 x 2600 (WH) four hand stainless steel doors. The door frame is processed by 1.2mm stainless steel and black titanium gold material. The door frame around 2mm Square keel welding, fixed hinge using 6mm cold rolled steel plate welding as embedded parts in the keel, ensure the door does not sag, using aluminum mold hinge 180120 thickness 15mm, can guarantee the strength and beautiful atmosphere. The observation window uses double mesoporous interlayer 8mm thick tempered glass to ensure safety and no injury.
	Wallboard	Fireproof siliconrock color steel plate 0.326mm, 50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation, Galvanized steel roof panel HCF100G:Door is stainless&glass,other 3 side use Fireproof siliconrock color steel plate. HCF200G:Door and 1side are stainless&glass,other 2 side use Fireproof siliconrock color steel plate. HCF300G:Door and 2side are stainless&glass,other 1 side use Fireproof siliconrock color steel plate.

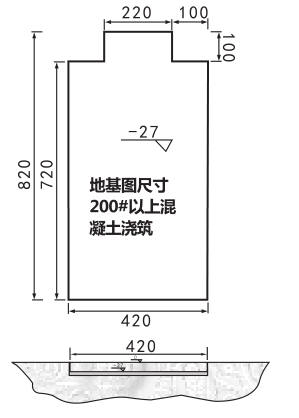

	Basement	Galvanized Steel Sheet and Square steel pipe assembling, Grid &embossed plate floor, Three embossed steel ramps.
Air Circulation System	inlet Fan	No	Outlet Fan:5.5kw /1set
	Air Volume: 20000m³/h; Air Speed: 0.35m/s, Air Recycling times:280 times/h;
Purification System	Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10μm. Ceiling Filter Capture Granules Bigger than 4μm. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.4mg/m³
Heating System	Burner	30pc Infrared heating tube and can Universal rotation
	Heat Energy Converter	SUS304 Stainless Steel heat exchanger, argon arc welding;
	Max Temp:80^。C, Heating Time:6-8min(20-50℃),
Light System	Ceiling Light: 24pcs 36w Philips Lamp; 800 Lux
Controlling System	Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm

Dimensions:

8200*4000*4300mm
Package Information:

18CBM/PC
Metal frame and carton
More Detail:

4:Important function

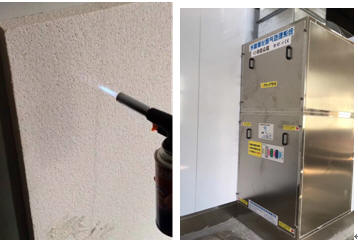

Fireproof silicone wallboard
light can rotat

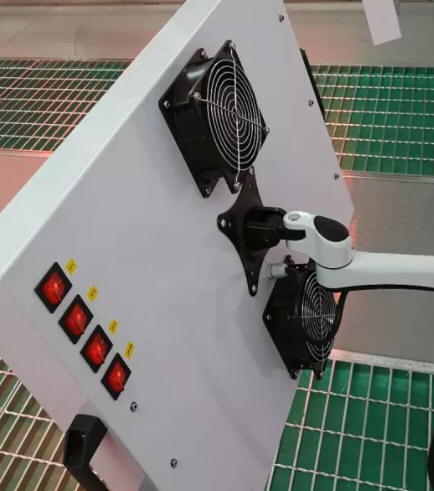

Water paint Air supply dry system
Photocatalytic waste gas treatment system

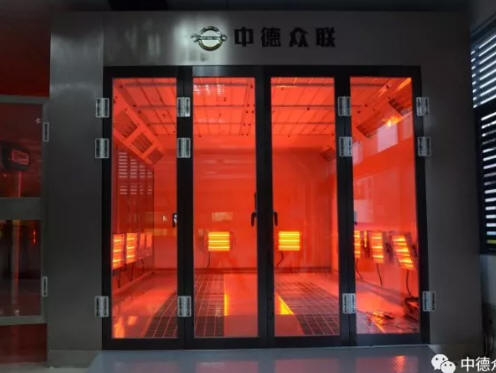

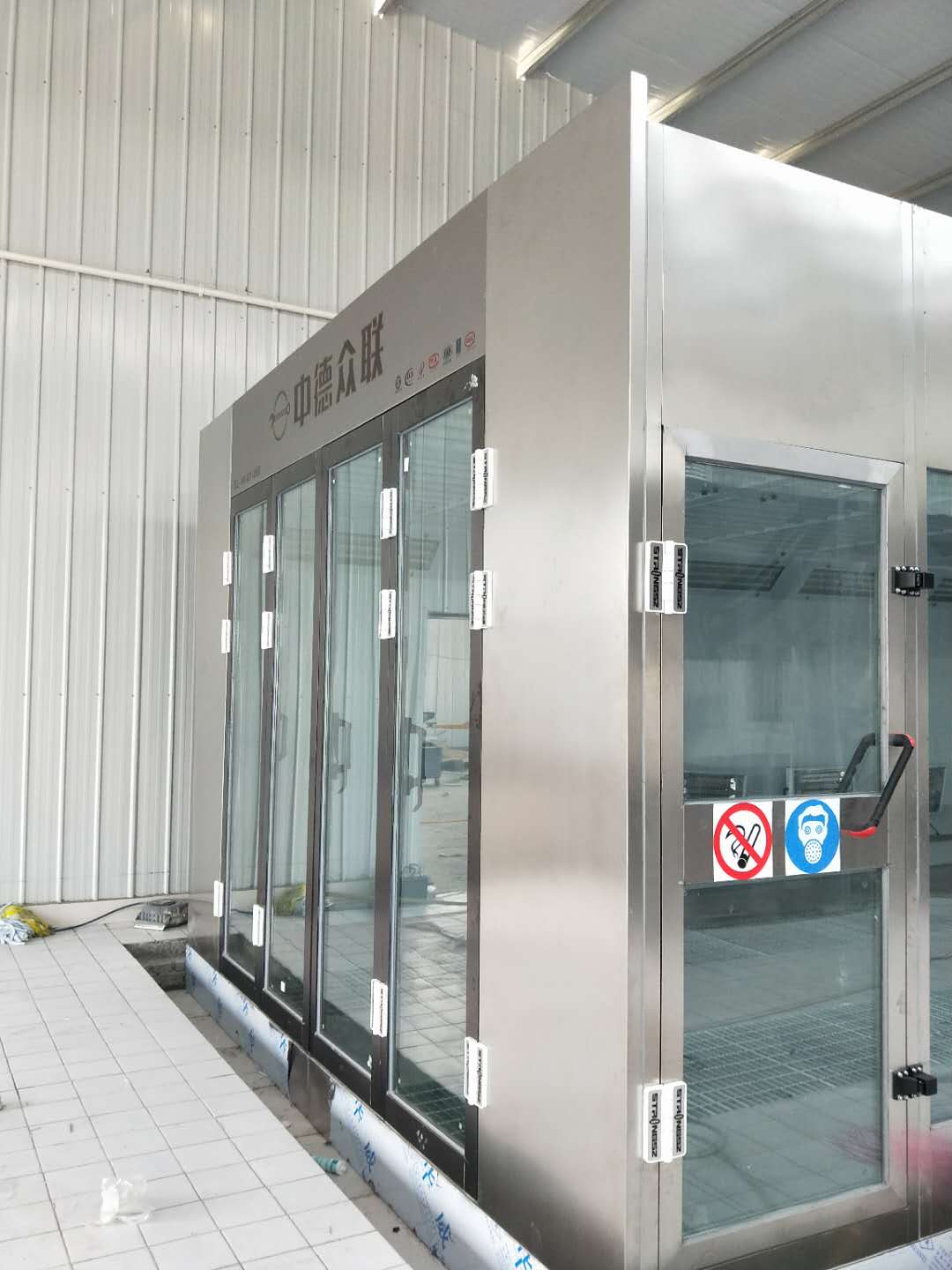

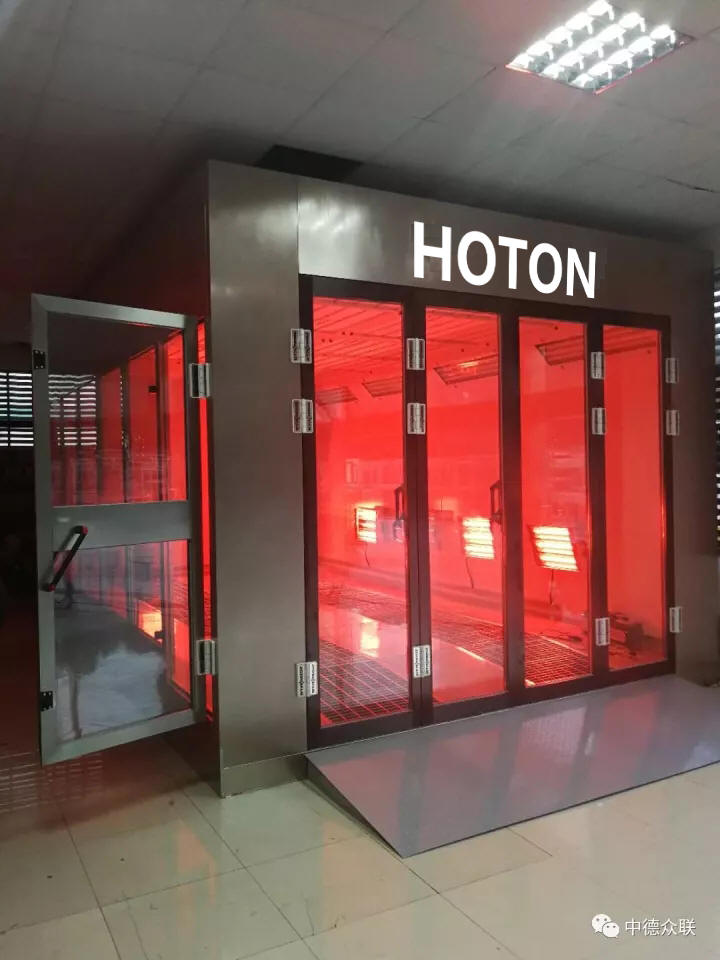

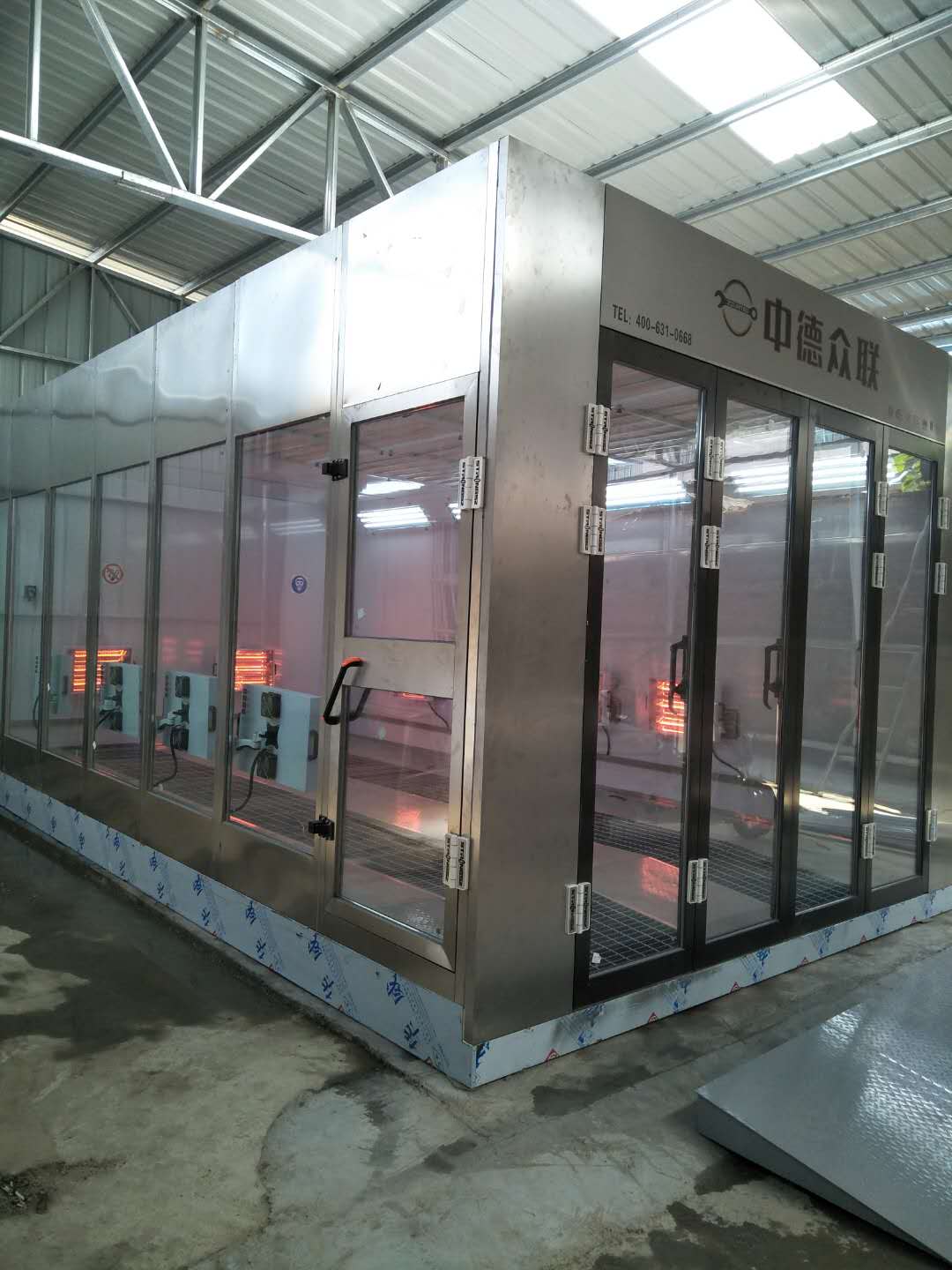

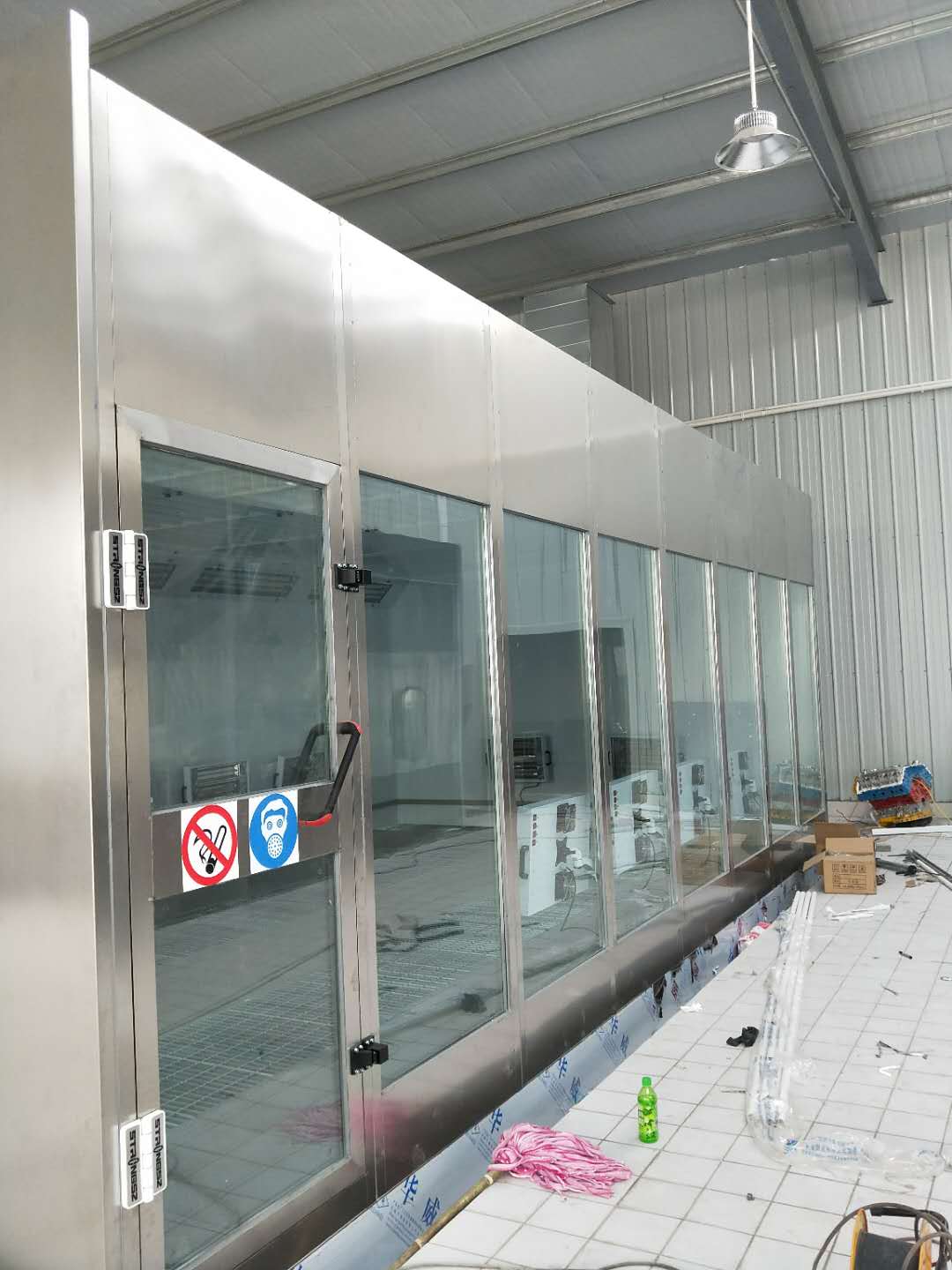

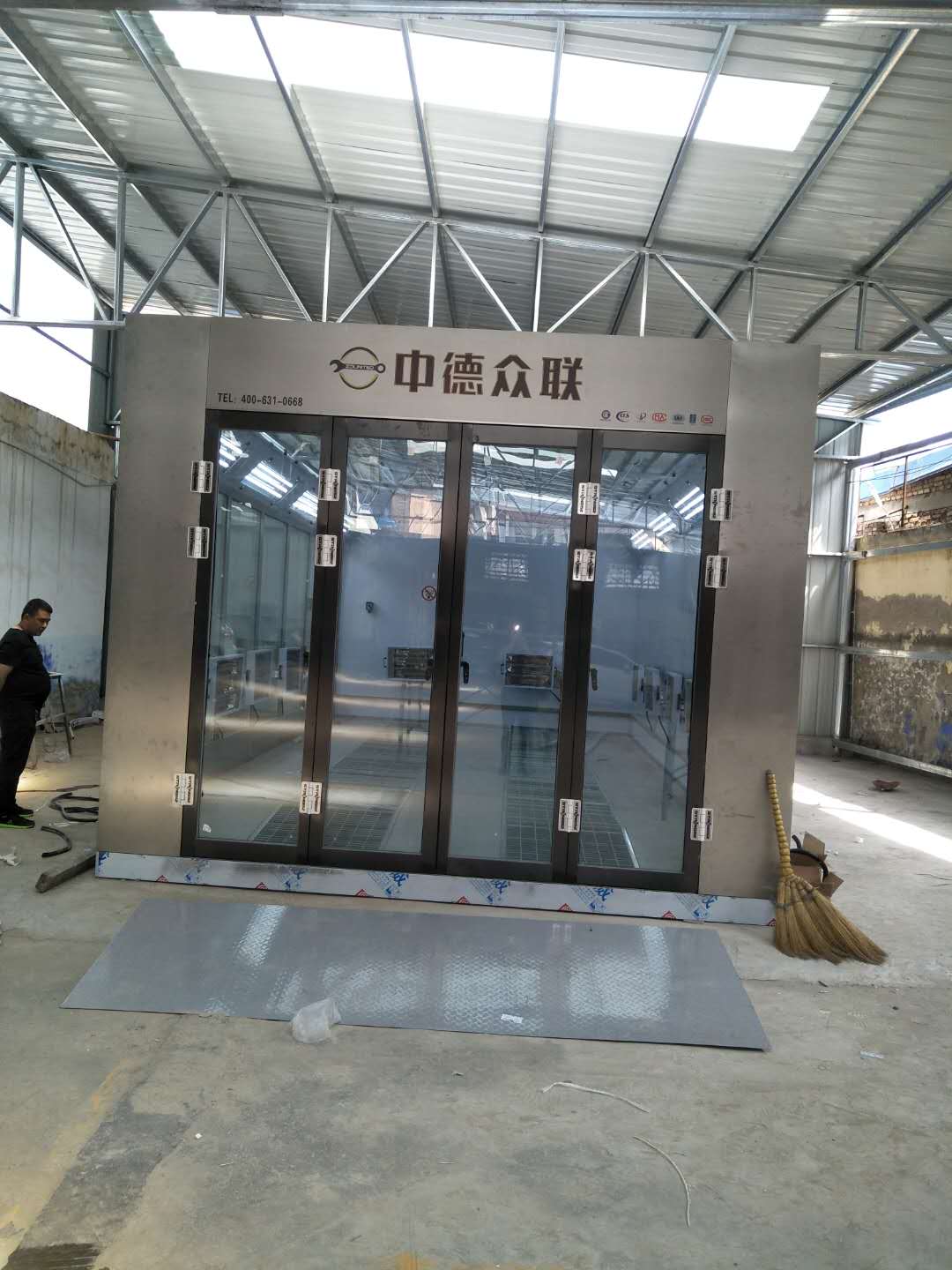

Stainless steel glass door

5:case
　

Click here introduce video

http://k.360kan.com/pc/detail/WEKB8GD7VzQA
