HOTON Scissor Lift Series

---Our product,Your face

Feature:
1.Low profile platforms, only 105mm high when fully lowered, need less space.
2. Pneumatic safety lock is automatically engaged after pressing the up/down button.
3. Anti-surge valve prevents the arms from sudden falling in case of broken hydraulic hose, for both operator and vehicle’s safety.
4. Each platform is the complete steel plate without splicing, to ensure flatness and durability.
5. Low voltage controls conform
Specifications:

• Model
• HC-530XL
• Lifting capacity
• 3000kg(6614lb)
• Lifting height
• 1850mm(72.8")
• Platform height
• 110mm(4.1")
• Platform length
• 1450mm(57")
• Platform width
• 635mm(25")
• Lifting time
• ≤55s
• Dropping time
• ≤55s
• Width
• 2030mm(80")
• Length
• 2050mm(80.7")

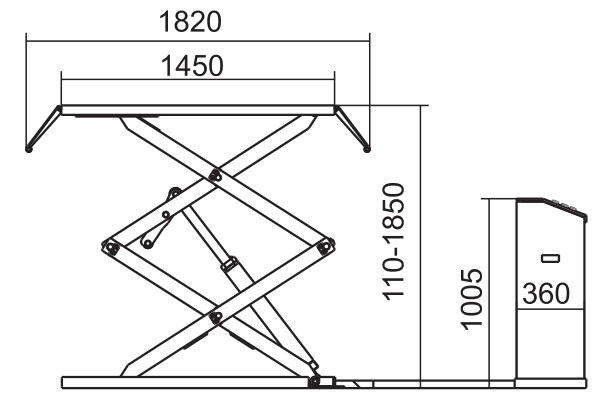

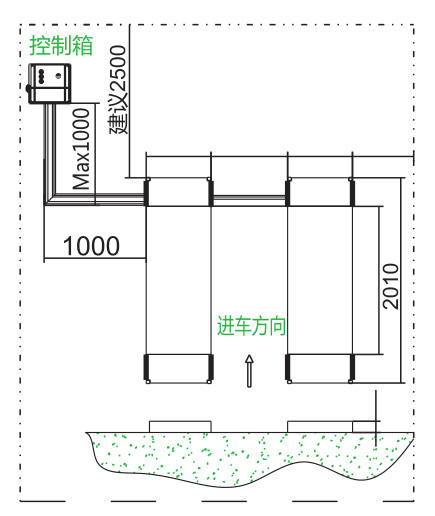

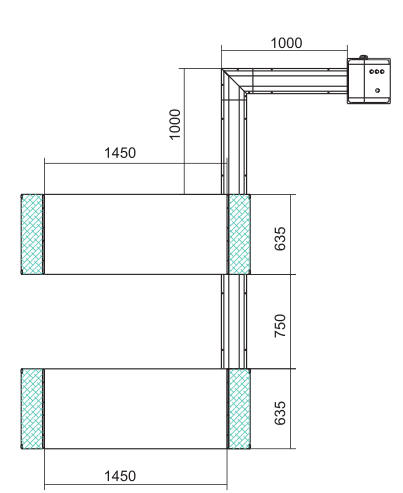

Dimensions:

Package Information:
Metal frame and carton
Main dimension: 1860*700*400mm, 520*360*1230mm
G.W./N.W.: 1020KG/975KG
Qty of Container: 25units/20'GP

More Detail:
