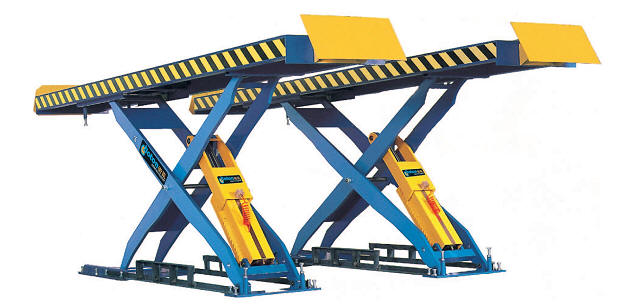

HC635P HC640P HC655P Scissor Lift

Feature:

1. With ground mounting, need small space when fully lowered.
2.The second lifting guide rail is ready for the secondary lifting trolley (optional part).
3.Pneumatic safety lock is automatically engaged after pressing the up/down button.
4.Anti-surge valve prevents the arms from sudden falling in case of broken hydraulic hose, for both operator and vehicle’s safety.
5.Each platform is the complete steel plate without splicing, to ensure flatness and durability.
6.Low voltage controls conform to CE standards.

Specifications:
　

TYPE	WEIGHT(lenght)	TOP HAIGH	LOW HAIGH	POWER（kw）	L	GW （kg）
HC635P(Item:6463001）	3.5t	1850mm	330mm	2.2kw	4000mm	2200
HC640P(Item:6463002）	4t	1850mm	330mm	2.2kw	4500mm	2500
HC655P(Item:6463003）	5.5t	1850mm	380mm	2.2kw	5000mm	2800

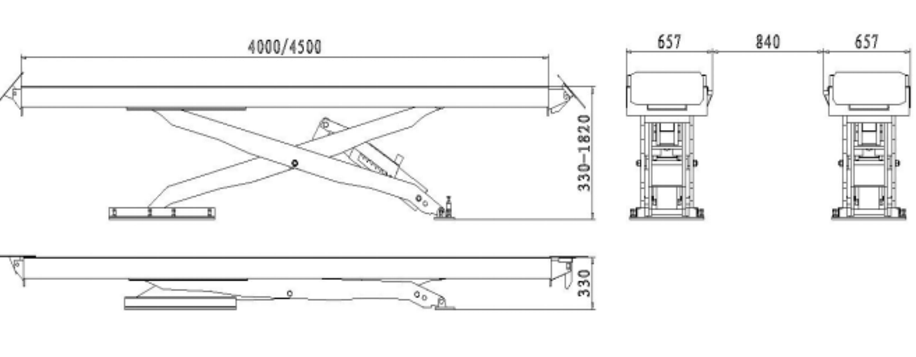

Dimensions:

HC635P&HC640P

Package Information:
Metal frame and carton
