HCF90G negative pressure Spray Booth （Item：713900）2018 New type

Product features:
1: wall body color coated plate for customized snow-white, increase the luminosity. The filling material is fireproof silicon rock plate (comply with the fire fighting requirement), and the two sides are provided with tear proof keel.
2: no air supply, a 5.5KW centrifugal fan to ensure air volume and wind speed in the room.
3: high strength manual metal door, ensure no subsidence, no deformation.
4: this type of housing is suitable for deep, long and narrow workstations.
5: stainless steel platform fencing, to ensure the service life of the platform for more than ten years.
6: the inner slope 1 meters, the outer slope 1 meters slope design, may save the user to use the field, the low threshold enters the vehicle to be more convenient, is not easy to hang the vehicle chassis. The whole vehicle board can effectively shorten the turning radius and is more secure.
Feature:

Cabin System	Wallboard	Fireproof siliceous rock Colorful Steel Skin Boards 0.326mm, 50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation, Galvanized steel roof panel
	Basement	Stainless Steel Sheet and Square steel pipe assembling, Grid &embossed plate floor, Three embossed steel ramps.
Air Circulation System	Inhaling Ventilator	NO	Blower capacity: 22000m³/h Power: 5.5kw/set Quantity: 1 sets
	Air Volume: 22000m³/h; Air Speed: 0.35m/s, Air Recycling times:280 times/h;
Purification System	Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10μm. Ceiling Filter Capture Granules Bigger than 4μm. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.4mg/m³
Heating System	Burner	30pc Infrared heating tube
	Heat Energy Converter	SUS304 Stainless Steel heat exchanger, argon arc welding;
	Max Temp:80^。C, Heating Time:6-8min(20-50℃),
Light System	Ceiling Light: 24pcs 36w Philips Lamp; 800 Lux
Controlling System	Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm

Specifications:

Outside Size (mm)	820040004300mm	Front Door(mm)	3000(w)×2700(H)
Inside Size(mm)	6900×3900×2650	Total Power(km)	5.5+30kw

Dimensions:

8200*4000*4300mm
Package Information:

18CBM/PC
Metal frame and carton
More Detail:

4:You can select part

Fireproof silicone wallboard	add 0
Water paint Air supply dry system	Add 0
Photo-oxygen Catalysis waste gas treatment system	Add $1500
Let the light in the wallboard	Add$420
Stainless steel glass door	Add$1500
Fan pipe(0.91M,700*700)	Add:$40

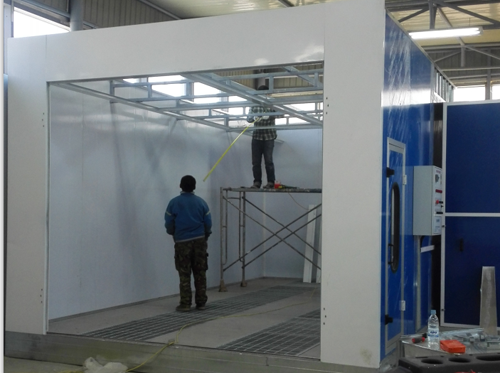

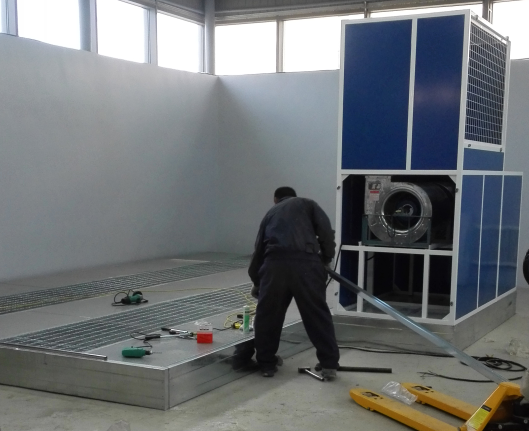

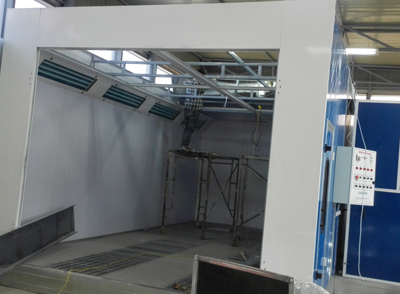

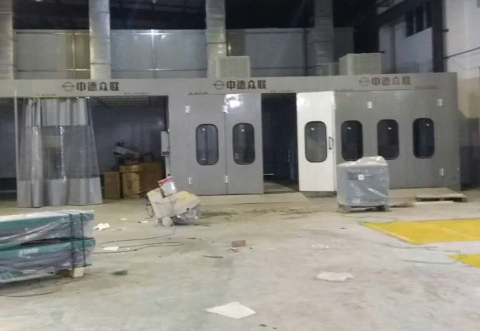

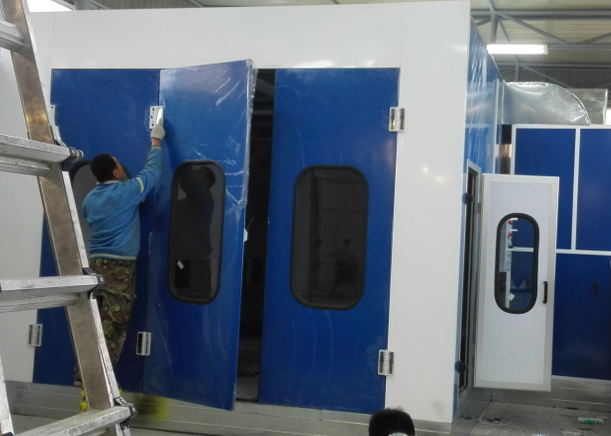

5:Install case

　
