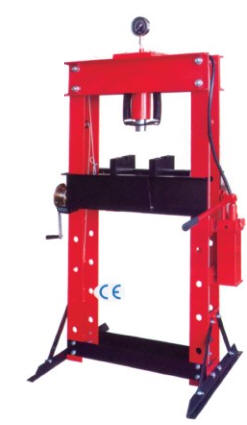

Item:645201
20T shop press
Stroke:160mm
Max. Working Distance:1080mm
Min. Working Distance:80mm
Packing Size: 1600X160X125mm
N.W.: 41kg/ G.W.: 43kg
20-Inck Container:150PCS

Item:645202
20T SHOP PRESS WITH GAUGE
RATED LOAD: 20T
STROKE: 145mm
MAX.WORKING DISTANCE: 1035mm
MIN.WORKING DISTANCE: 90mm
G.W.: 92kg N.W.: 90kg
PACKAGE SIZE: 1595x210x115mm
650x225x250mm
QTY IN 20’ CONTAINER: 210PCS
　

Item:645203
30T SHOP PRESS WITH GAUGE
RATED LOAD: 30T
STROKE: 150mm
MAX.WORKING DISTANCE: 820mm
MIN.WORKING DISTANCE: 130mm
G.W.: 160kg N.W.: 150kg
PACKAGE SIZE: 1750x380x270mm
QTY IN 20’ CONTAINER: 120PCS

　
　
Item:645204
40T SHOP PRESS WITH GAUGE
RATED LOAD: 40T
STROKE: 235mm
MAX.WORKING DISTANCE: 885mm
MIN.WORKING DISTANCE: 100mm
G.W.: 250kg N.W.: 220kg
PACKAGE SIZE: 1850x950x430mm
QTY IN 20’ CONTAINER: 30PCS		 Item:645205
50T SHOP PRESS WITH GAUGE
RATED LOAD: 50T
STROKE: 235mm
MAX.WORKING DISTANCE: 885mm
MIN.WORKING DISTANCE: 100mm
G.W.: 267kg N.W.: 235kg
PACKAGE SIZE: 1850x950x430mm
QTY IN 20’ CONTAINER: 30PCS
　		 　
