Launch Car Lift Series

---Our product,Your face



Feature:

This machine is applicable for the lifting of various small and medium-sized vehicles with total weight below 4.0t in garage and workshop

Single-side manual safety unlocking.
Single-side manual lowering device ,safe and easy operation.
 The cable and oil pipe are fully concealed; with decent and elegant appearance.
 Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle  form tilting.
  Cylinder travel limit switch effectively protects cylinder and  extends its lifespan.
  Door rubber pad protects car door from being damaged in collision.
  More lifting pads with different height meets the  requirements for light lorries and SUVs.
 Passed 115% dynamic loading test and 150% static loading test .

Specifications:

Rated load：4000kg
Lifting height：1850mm
Initial height：　　　110mm
Lifting time：≤50s
Lowering time：≥20s≤40s
Overall height：3840mm
Motor power ：2.2kw
Motor voltage：3 phase/380v or Single phase/220V
Working noise：≤75dB（A）
Working oil pressure： 18M Pa

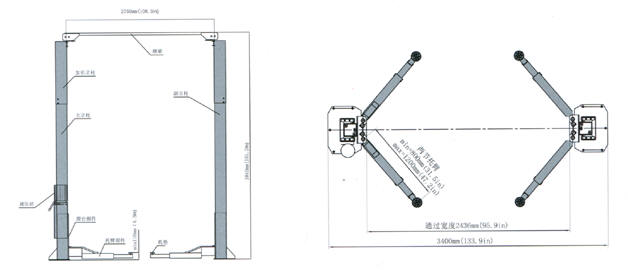

Dimensions:

Package Information:
 carton

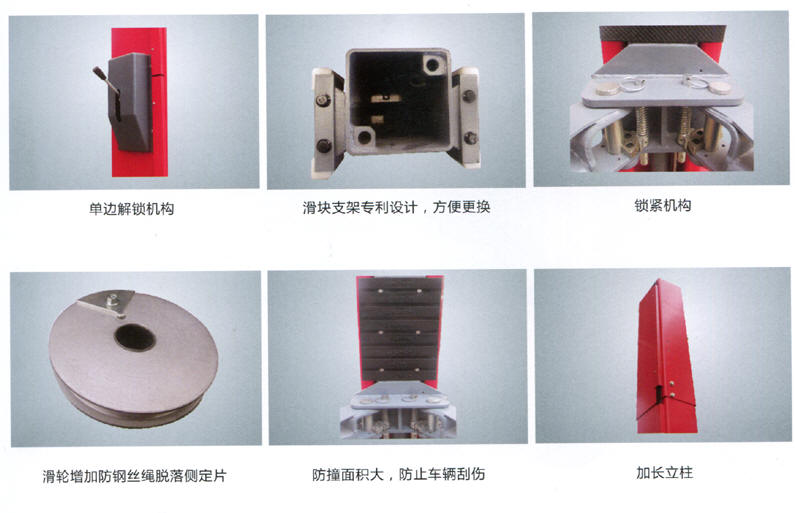

More Detail:
