Measuring parameter:

Display accuracy: Range - , Accuracy 1/0.01°/0.1mm

Camber: Range  ± 10°, Accuracy  ± 2'

Caster: Range ± 20°, Accuracy  ± 6'

K.P.I.: Range ± 20°, Accuracy  ± 6'

Toe-in: Range ± 20°, Accuracy  ± 2'

Set back: Range  ± 5°, Accuracy  ± 2'

Thrust angle: Range  ± 5°, Accuracy  ± 2'

Thread: Range  1,800mm, Accuracy  ± 1mm

Wheelbase: Range  3,500mm, Accuracy  ± 2mm

Features:

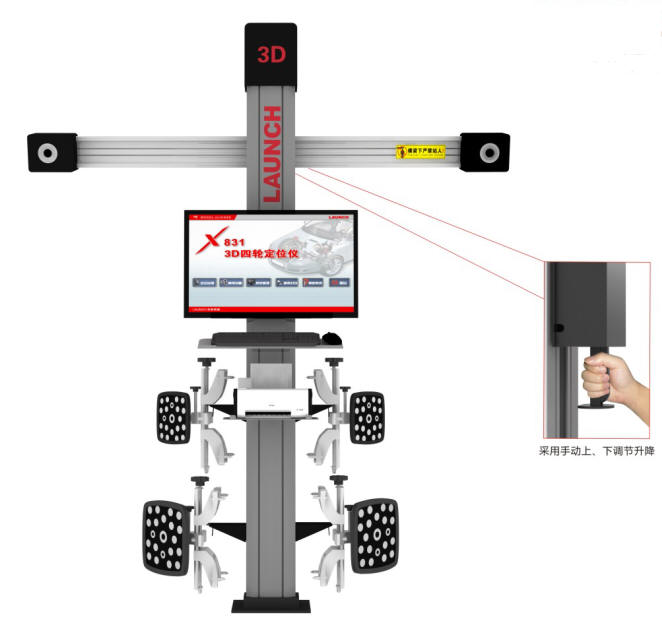

1, Computer calcutale four wheel alignment data through 3D digital signals, target boards fixed on 4 wheels by 2 speedy&high-accuracy digital dynamic carmeras;

2, The four target boards only have detector imagin, w/o electronic parts and connection, reduce fault greatly;

3, Only lift one time, or push the car, eccentric compensation could be achieved, improve measuring speed very much;

4, No need calibration before use, because the machines were calibrated very well before delivery;

5, 3D animation guides technicians how to adjust;

6, Steering wheel reset function ensures the steering wheel keep straight without adjusting set back or thrust angle;

7, Optional wheelbase and tread measurement fuction, technicians know the chassis condition much better;

8, Quick searching the four wheel alignment data, and upgrade database by free permanently;

9, English / Chinese version.

Packing Information:

packing material: polywood box OR carton box

strong and convenient to export transport
