Piston type air compressor Item：#8600xx)	Compressed air station with dryer and tank (Item:#861001)	3:Compressed air station with tank (Item:#861002)

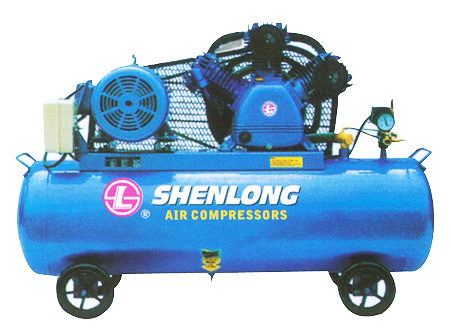

1：Piston type air compressor （Item：#8600xx)

Single	Type	motor			Gas cylinder	Exhaust volume	Press	tank	size	weight
	Type	Item	KW	HP	Diameter*quantity	M3/min	MPA	volume	lengthwidthhigh	weight
	V-0.12/8	#860001	1.1	1.5	51*2	0.12	0.8	40	820680340	70
	V-0.17/8	#860002	1.5	2	51*2	0.17	0.8	70	960640340	85
	V-0.25/8	#860003	2.2	3	65*2	0.25	0.8	100	1100800400	95
	V-0.32/8	#860004	3	4	65*3	0.36	0.8	105	1150840440	130
	V-0.48/8	#860005	4	5.5	80*2	0.48	0.8	110	1150860430	150
	V-0.6/8	#860006	4	5.5	90*2	0.6	0.8	110	1150860440	160
	W-0.67/8	#860007	5.5	7.5	80*3	0.67	0.8	120	1250900500	210
	W-0.9/8	#860008	7.5	10	90*3	0.9	0.8	160	1420920520	230
	W-1.0/8	#860009	7.5	10	90*3	1.0	0.8	170	1520920550	245
	W-1.5/8	#860010	11	15	105*3	1.5	0.8	320	17606301300	350
	W-2.0/8	#860011	15	20	120*3	2.0	0.8	320	17606301300	380
second	V-0.20/12.5	#860012	2.2	3	651/511	0.2	1.25	100	1100800400	105
	W-0.28/12.5	#860013	3	4	652/511	0.25	1.25	150	1150840440	145
	W-0.6/12.5	#860014	5.5	7.5	802/651	0.6	1.25	120	1250900500	225
	W-0.8/12.5	#860015	7.5	10	902/801	0.8	1.25	160	1420920520	250
	V-1.05/12.5	#860016	7.5	10	1052/901	1.05	1.25	280	15001120550	350
	W-1.3/12.5	#860017	11	15	1052/901	1.3	1.25	320	17606301300	350
	Z-1.6/10	#860018	11	15	1551/821	1.6	1.0	200	17007801050	620
	W-1.8/12.5	#860019	15	20	1202/901	1.8	1.25	320	17606301300	380
	VF-3.0/10	#860020	22	30	1552/822	3.0	1.0	320	18408701300	950

2:Compressed air station with dryer and tank (Item:#861001)

Product Features
1, all intelligent control system with automatic fault diagnosis, display, alarm and protection.
2, using the belt or direct drive has a quiet, buffering, shock-absorbing function.
3, the unique design of the oil reservoir, to avoid friction, extended service life.
4, with the best screw host and high compression efficiency, energy-saving than similar products on the market more than 5%.
5, efficient two cyclone, centrifugal gas-liquid separator configured to automatically drain the maximum moisture content of compressed air allows complete separation.

Technical Parameters
Displacement / discharge pressure: 1.2 / 0.8,1.1 / 0.8,0.95 / 1.0,0.8 / 1.2m³ / min / MPa
Motor power: 7.5KW
Noise: 66 ± 2A
Outlet diameter: G1 / 2 Inch
Air volume: 1.5m³ / min
Compressor: 0.35HP
Input voltage: 220V / Hz
Tank:0.3m3
size:1780*750*1500mm
weight:500kg

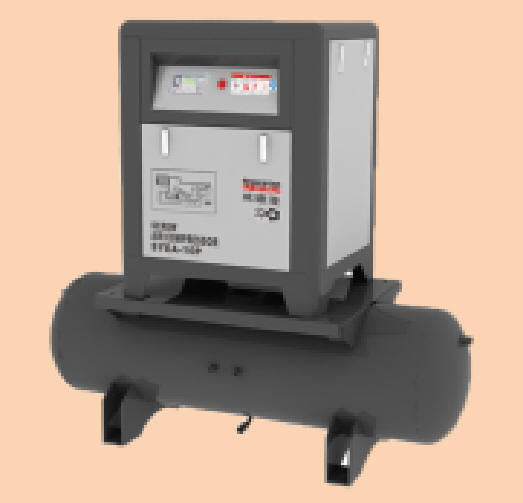

3:Compressed air station with tank (Item:#861002)

Product Features
1, all intelligent control system with automatic fault diagnosis, display, alarm and protection.
2, using the belt or direct drive has a quiet, buffering, shock-absorbing function.
3, the unique design of the oil reservoir, to avoid friction, extended service life.
4, with the best screw host and high compression efficiency, energy-saving than similar products on the market more than 5%.

Technical Parameters
Displacement / discharge pressure: 1.2 / 0.8,1.1 / 0.8,0.95 / 1.0,0.8 / 1.2m³ / min / MPa
Motor power: 7.5KW
Noise: 66 ± 2A
Outlet diameter: G1 / 2 Inch
Gas tank: 0.3m³
Dimensions: 1780x750x1500mm
Weight: 450kg
　
