HOTON Park Lift Series

---Our product,Your face

Feature:

. Driven by chains, it is more safe and dependable than cables before
. Fourfold safety structures, it is more safe than double safety before
. All the circuitries are covert, needn’t disconnect wire or machine, which can help repair and maintenance more convenient and flexible
. With humanized drop function of rolling Jack
. The hydraulic circuit of this machine use throttling means, make the machine lift and drop more balanced.
. Long runways, wide machine, more fit for different auto model
. Power Supply 380V/220V 2.2KW 50HZ
. Use by import hydraulic components, make hydraulic circuit and cylinder more safe and dependable.
Specifications:

• Model
• HC227T
• Lifting weight
• 3000kg (6600 lb)
• Lifting height
• 2160mm (85.1”)
• Rise time
• 50s ~ 60s
• Power supply
• 380V/220V, 2.2kw, 50hz
• Total height
• 3393mm (133.7”)
• Total width
• 2802mm (110.4”)
• Platform length
• 4050mm (159.6”)

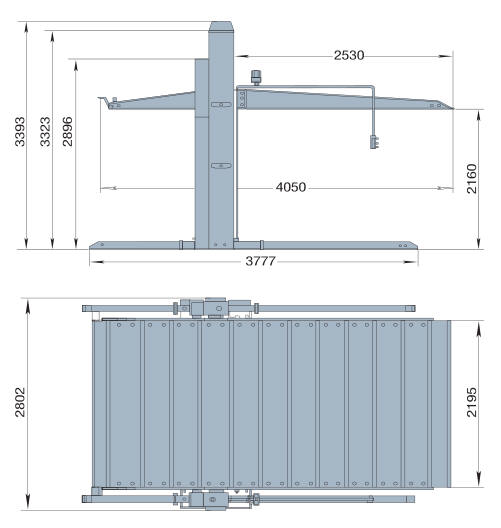

Dimensions:

Package Information:
Metal frame and carton
More Detail:
