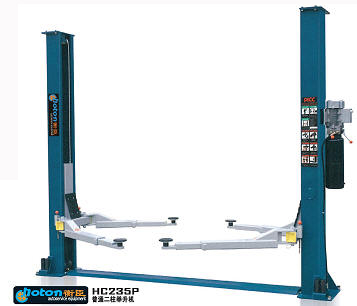

HOTON Two Post Lift Series

---Our product,Your face

Feature:

. Elegant appearance with hidden cable and pipeline.
. Adopt 4 safety hooks, balanced fixed, protect the lift front-rear balance and
reduce the abrasion and deformation of the machine to the maximum extent,
improve the safety performance of the lift
.Manual locked safety device, easy to inspect and maintain
. Equalization of two steel cables force both sliding blocks to move synchronously,
effectively prevent the vehicle from tilting
. Minimum height of the lifting pad is 125 mm, easily lift and suitable for low profile
cars and SUV.
. Equip aluminum motor and car door-opening protection as standard
configuration.
. Reliable oil cylinder, adopts chrome-plating honed cylinder and piston rod, with
Italian seals on hydraulic rams, ensure long service life
. Passed 115% dynamic test and 150% static test
Specifications

• Model
• HC-235P
• Feature
• Manual release
• Lifting Capacity
• 3500kg (7716 lb)
• Lifting Height
• 1800mm (70.9”)
• Machine Height
• 2826mm (111.3”)
• Machine Width
• 3420mm (134.6”)
• Rise time
• 50s
• Drop time
• 22s
• Power of motor
• 2.2kw
• Power Supply
• 220V/380V 1/3 PHASE

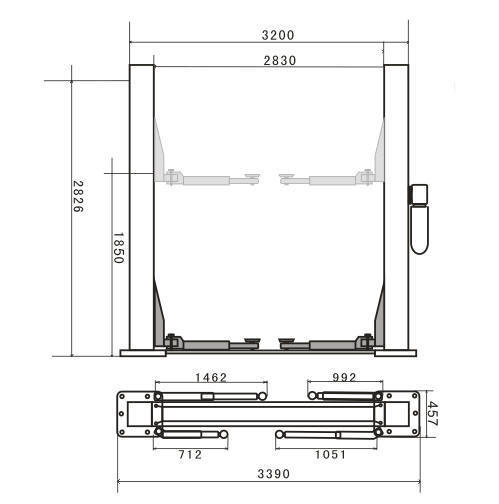

Dimensions

Package Information
Metal frame and carton
2800*550*600mm  600kg

More Detail
