HC-125A Movable single post lift （Item:611000）

Features

1.Single hydraulic post lift mainly for small vehicle repair, maintenance ,
replacement of tires.
2.The arm is adjustable and removable, especially recommend for workshops with
narrow space.
3.Easy positioning of vehicle, enable car door completely open.
4.Mechanical safety latch, manual release system and relief valve to prevent
overloading，ensure safety.

Specifications

Model

HC-125A

Lifting capacity

2500kg(5525lb)

Min height

145mm(6")

Max lifting height

1800mm(71")

Overall height

2500mm(98")

Overall width

1400-1700mm(55-67")

Lifting time

50s

Lowering time

30s

Power supply

220v/380v 1/3PHASE

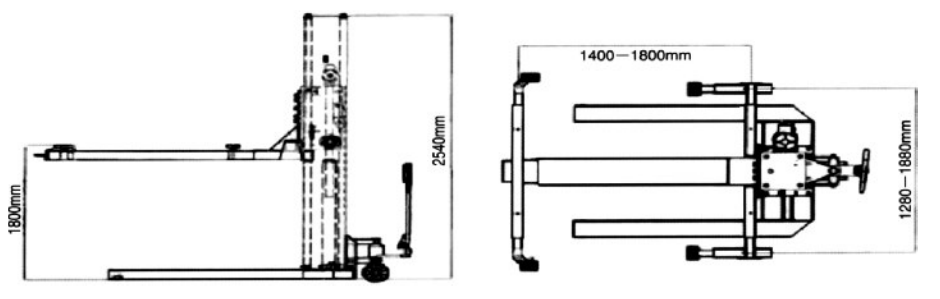

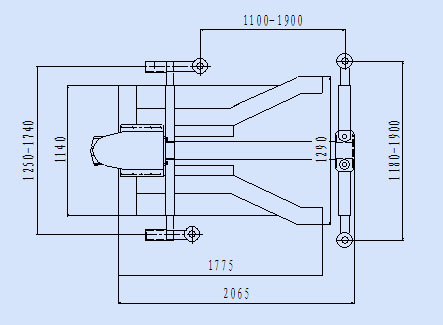

Dimensions

Package Information
Metal frame and carton 6pc/20"
