HOTON Single Post Lift Series

---Our product,Your face

Features

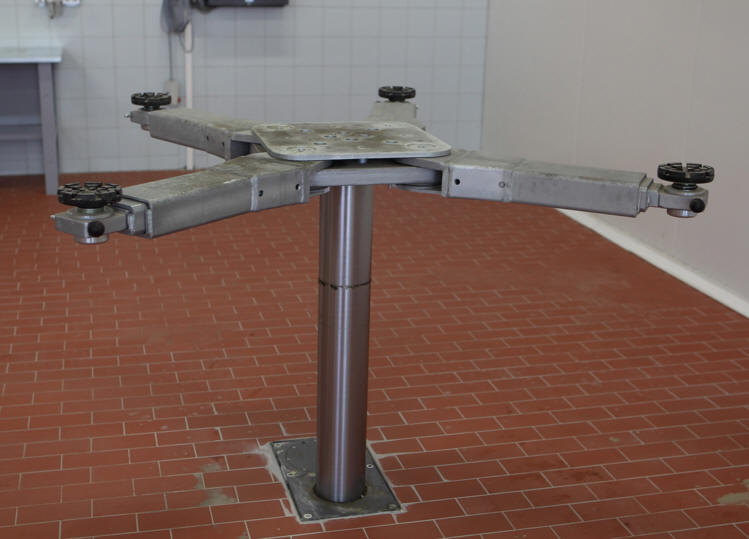

Inground lift HC-1280A, with the Main Unite installed under ground level and lifting arms above ground level to hoist the vehicle, can greatly expand the operating space for the inspection/maintenance workers.
Drive the vehicle to the working station, control the lifting button, the vehicle will then be lifted to the specified height before starting the inspection/maintenance job.
After complete the job, control the descending button, vehicle will be lowered to ground level by the hoister, before drive away from the working station.

Specifications

Lifting capacity：3200KG

Load sharing: max. 6:4 in or against drive-on direction

Max. Lifting height：1850mm

Entire Lifting (Dropping)Time: 40-60sec

Supply voltage：AC220/380V/50 Hz；AC230/400V/50 Hz

Power：2.2 kw

Motor speed：2850rounds/minute

Output of oil pump： 2.0ml/round

Set pressure of the overflow valve：18MPa

The pressure of the air source：0.6-0.8MPa

Solenoid valve pressure：AC220 V /50 Hz

N.W.：700KG

Main unit length：490mm

Main unit width：490mm

Main unit height：2514mm

Sound level (measured at control console): ≤75 dBA
Pit Dimensions:1000*1000*2650mm

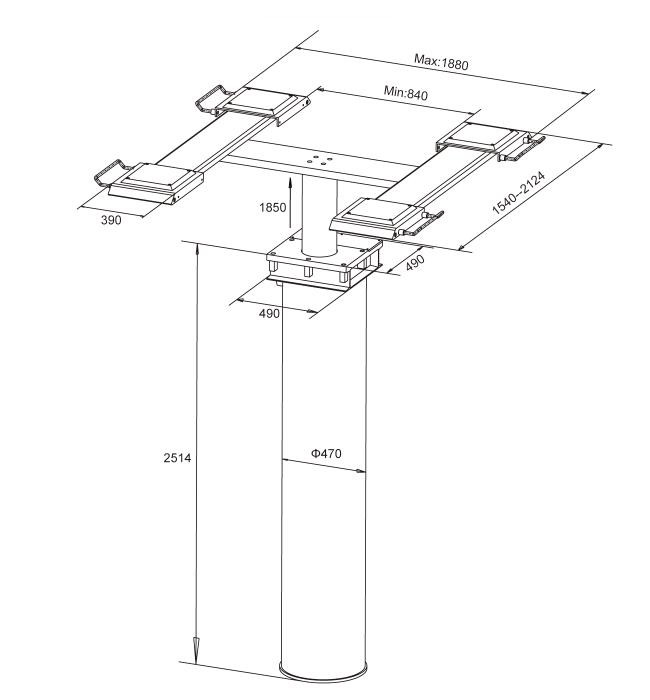

Dimensions

　

Package Information
Metal frame and carton  2800*500*700mm 1pc 700kg

More Detail

Case

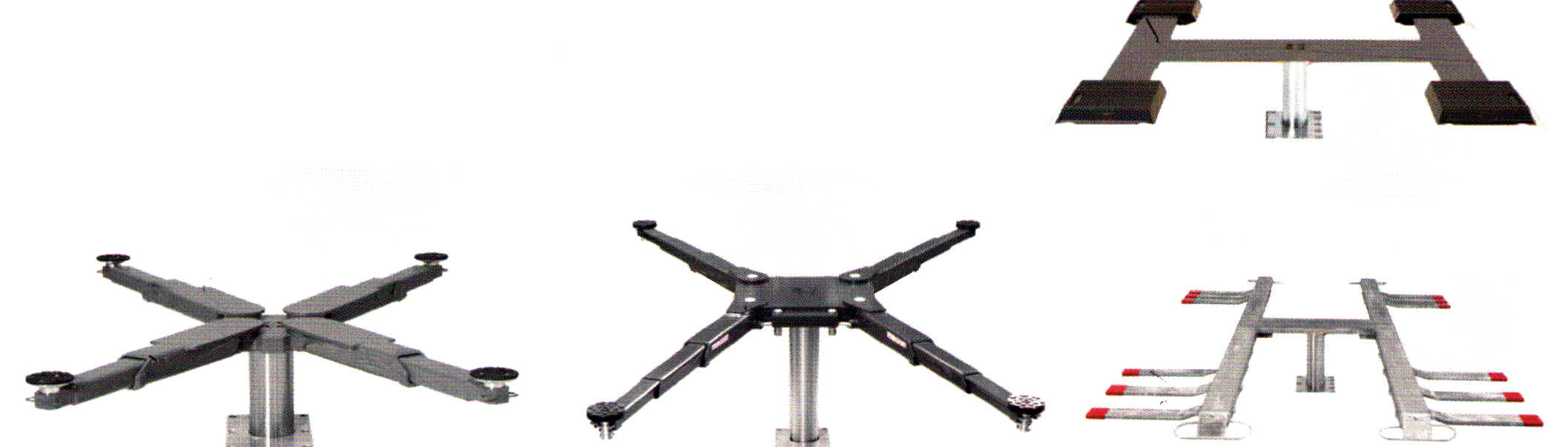

Other Type
