QJY240B Two Post Car Lift with bottom (Item:624002)

Feature:

Manual safety locking system
Driven by dual hydraulic cylinders
Mechanical locking system,w/single point safety latches in each column
Chain type lifting system
Steel wire rope equalizing cables
Multi-voltage power supply is available for electrical requirements
Optional motors
Adjustable lift pads and adapters
Low profile Floorplate
Durable powder coat finish

Specifications

Model：	QJY240B
Capacity：	4T
Moter performance：	2.2kw
Electrical connection ：	220v/380v
Lifting time：	50sec.
Package size ：	1#2855470720mm 2#320055545mm 3#800280320mm
N.W/G.W：	690kg/705kg
QTY/20’CY：	24PCS

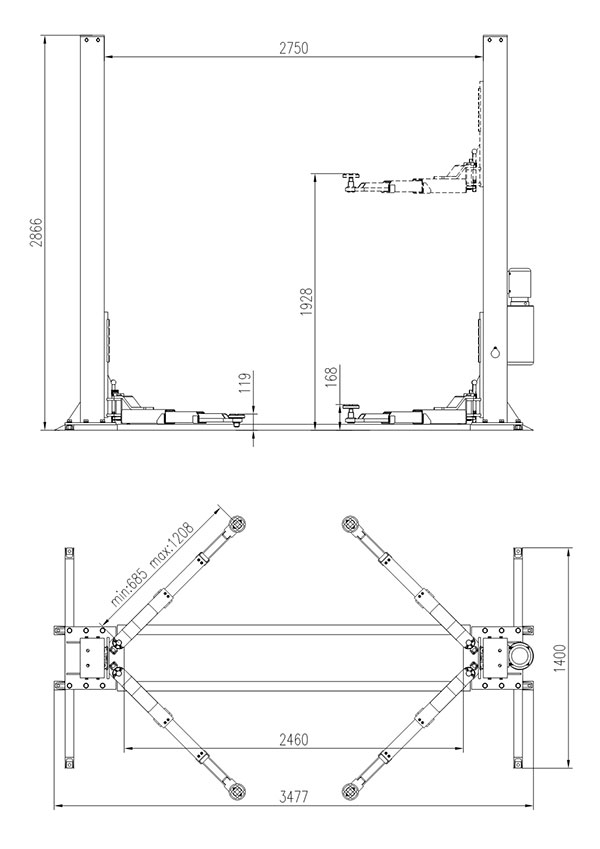

Dimensions

Package Information
Metal frame and carton
1#2855*470*720mm
2#3200*555*45mm
3#800*280*320mm

More Detail
